Add-on Modules
Add-on Modules allow you to enhance the software's functionalities on demand. Each software license can be allocated several add-on modules, which can be added during the initial order or subsequently.

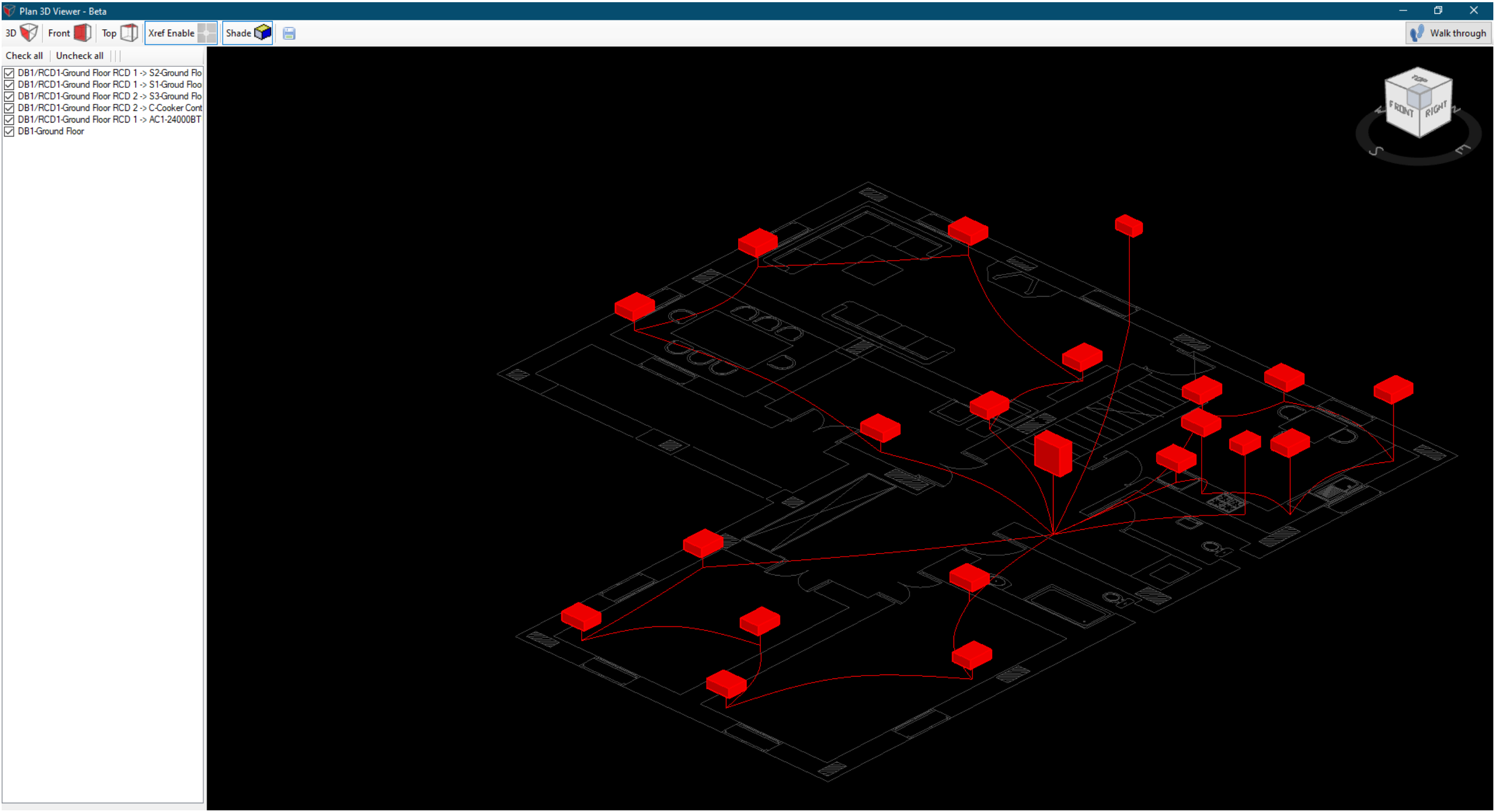

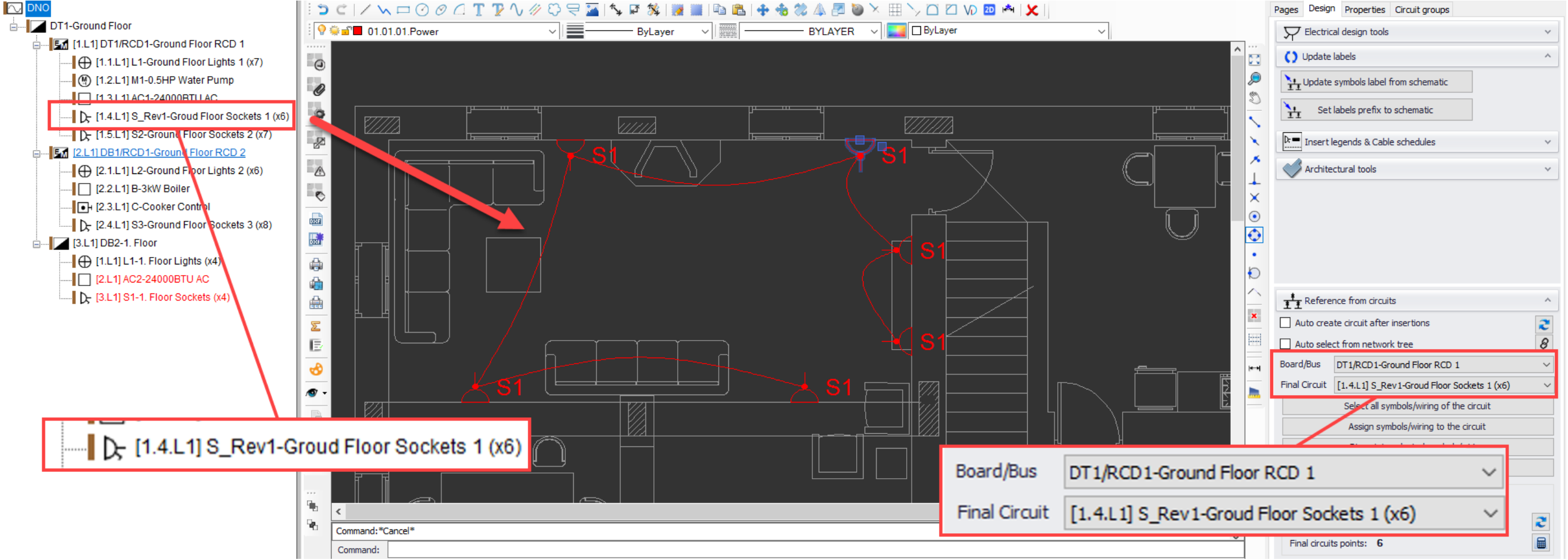

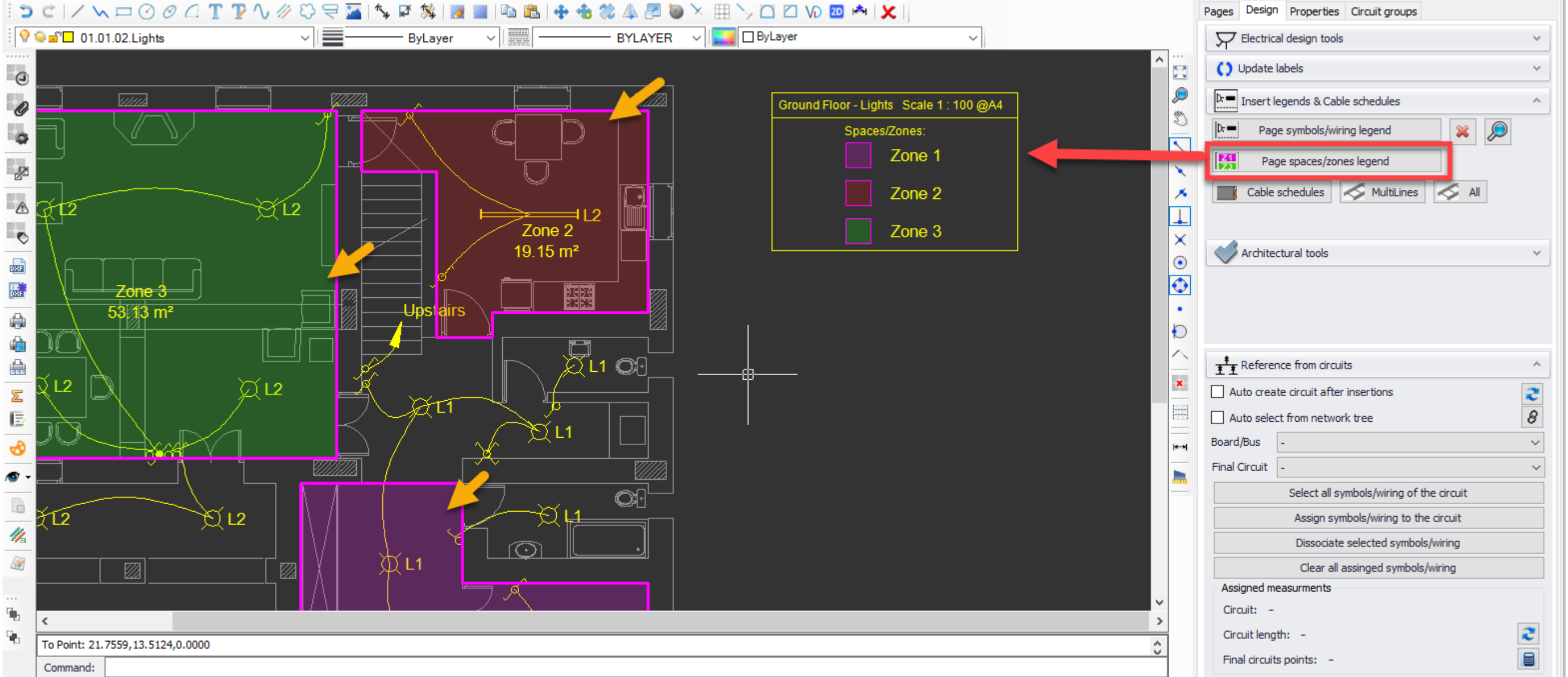

1. CAD Plan Design Add-on
• Generate electrical plan design drawings and gather information for circuit calculations,
including cable lengths and installation points per circuit.
• The electrical plan design can be synced with changes to the SLDs.
• The modules support PDF, DWG, and DXF files as input and output formats.
One Time Cost: ₹50,000
Annual Renewal & Maintenance Cost (from 2nd year): ₹ 12,500

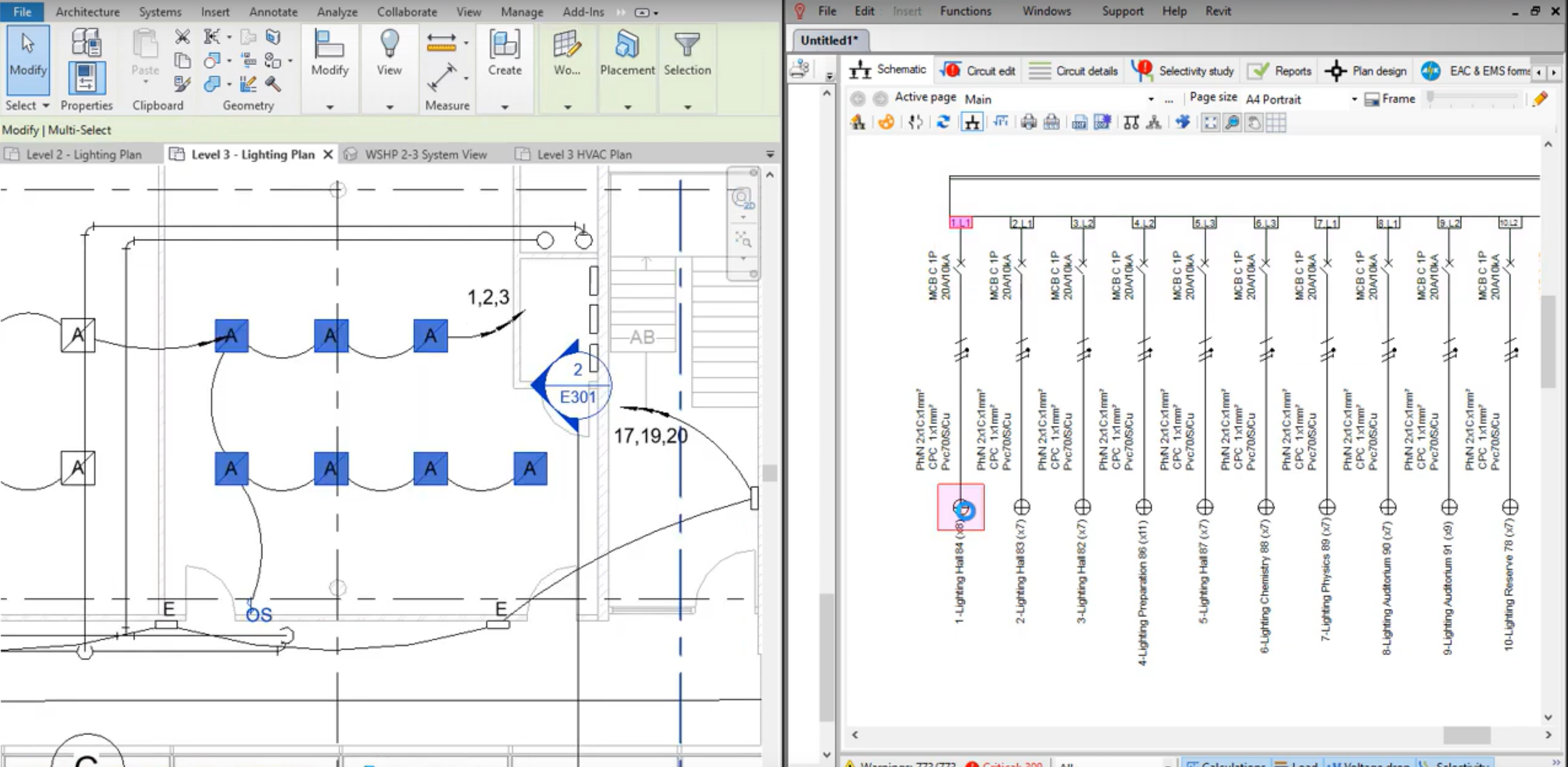

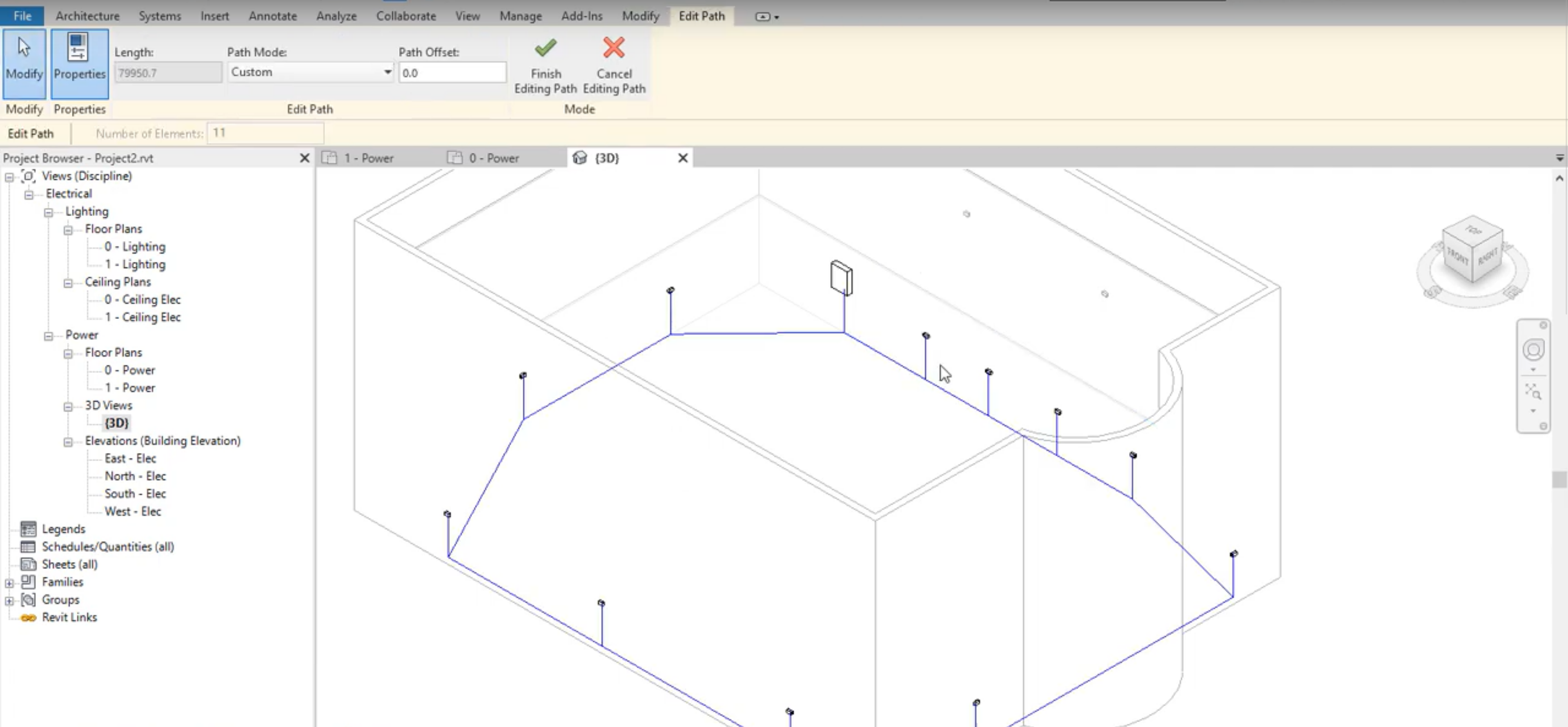

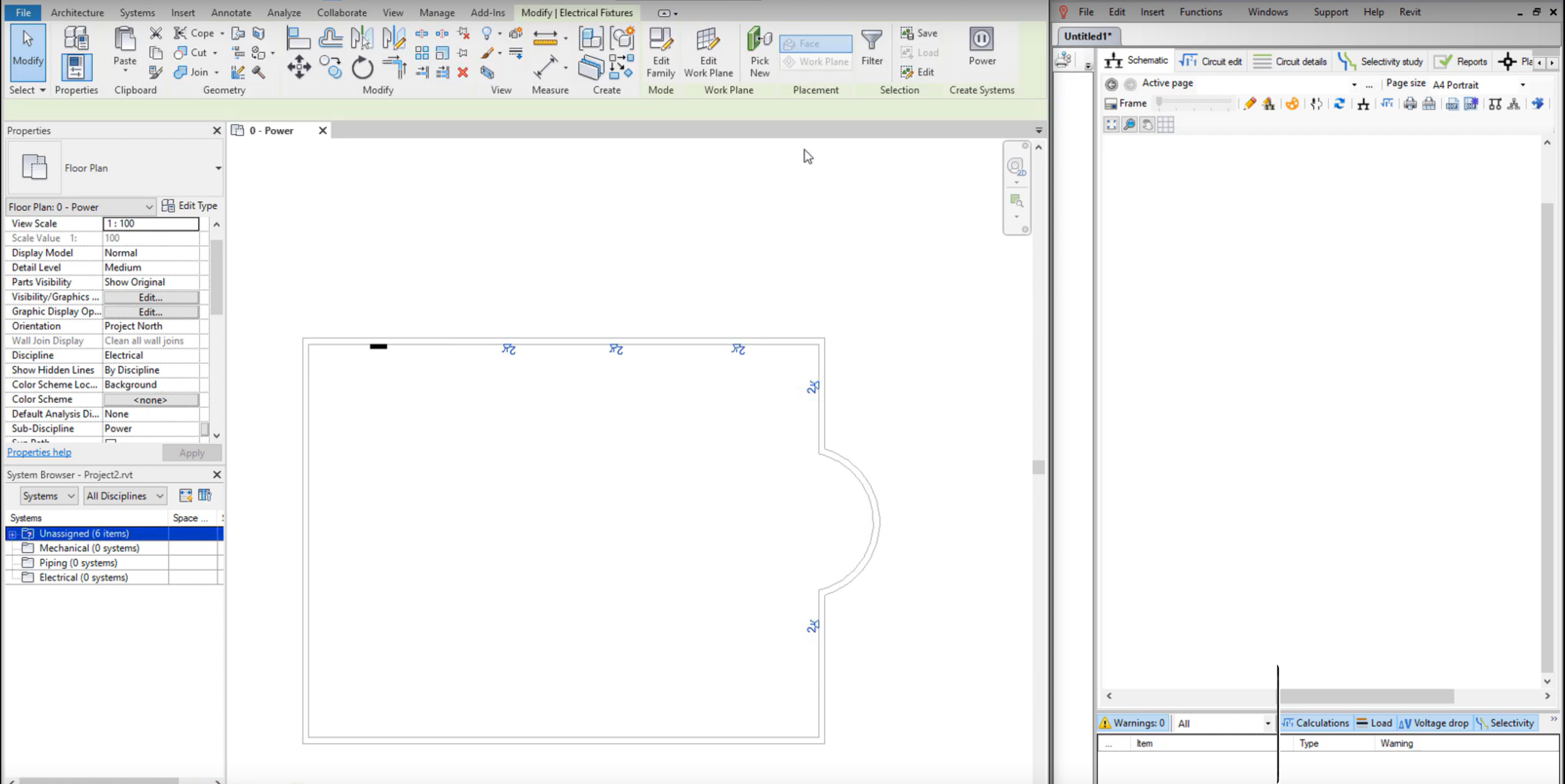

2. Autodesk Revit ® Synchronization Add-on
The Autodesk Revit ® - Electrical OM NEC-IN synchronization tool provides Electrical Engineers
and Designers the flexibility to synchronize their Revit Electrical Data with Electrical OM NEC-IN
allowing NEC of India 2023 calculations to be applied in the Autodesk Revit Building Information
Models and also to Auto-Create Schematic Diagrams.
Note: available only for Electrical OM NEC-IN ultimate.
Annual Cost: ₹ 1,21,000

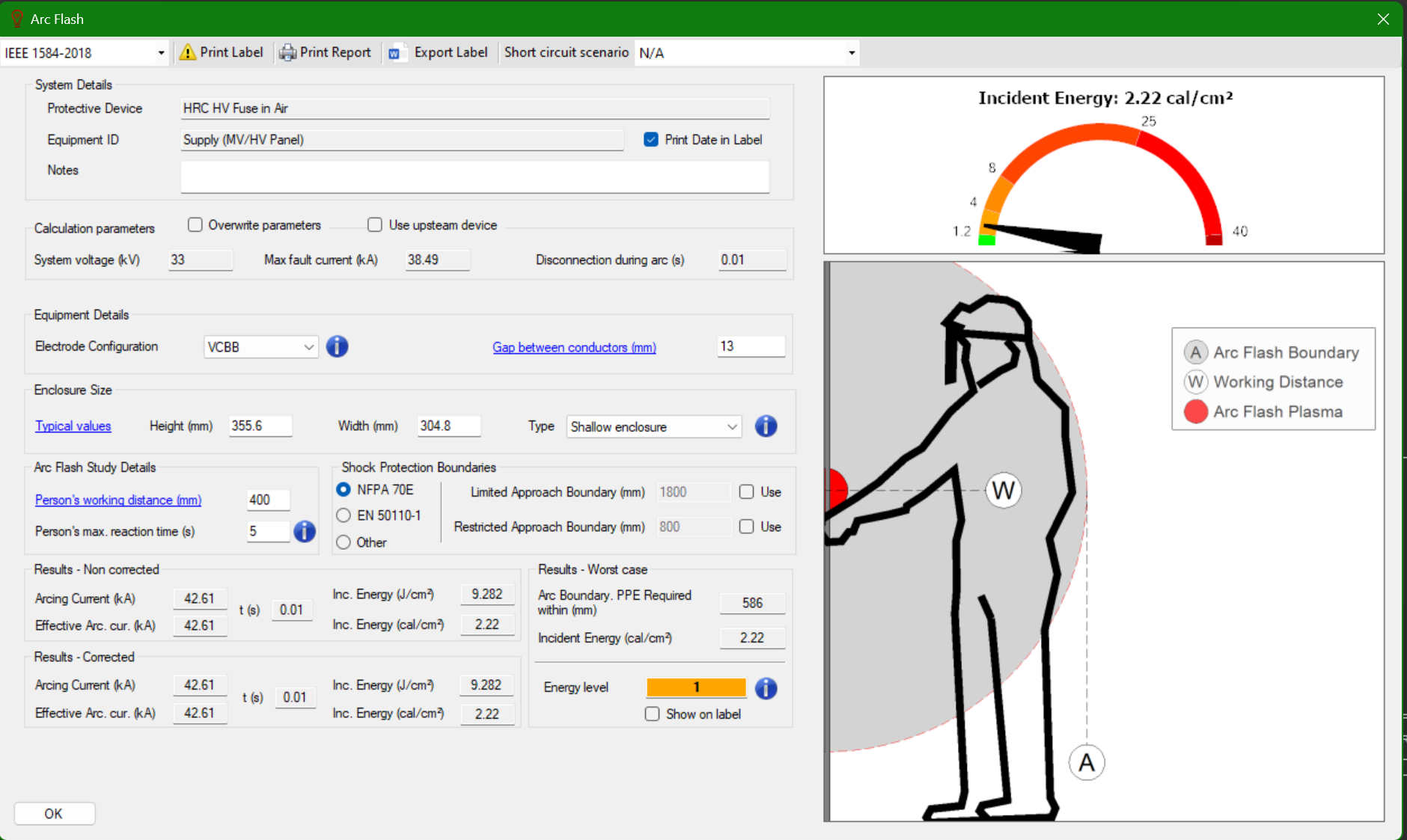

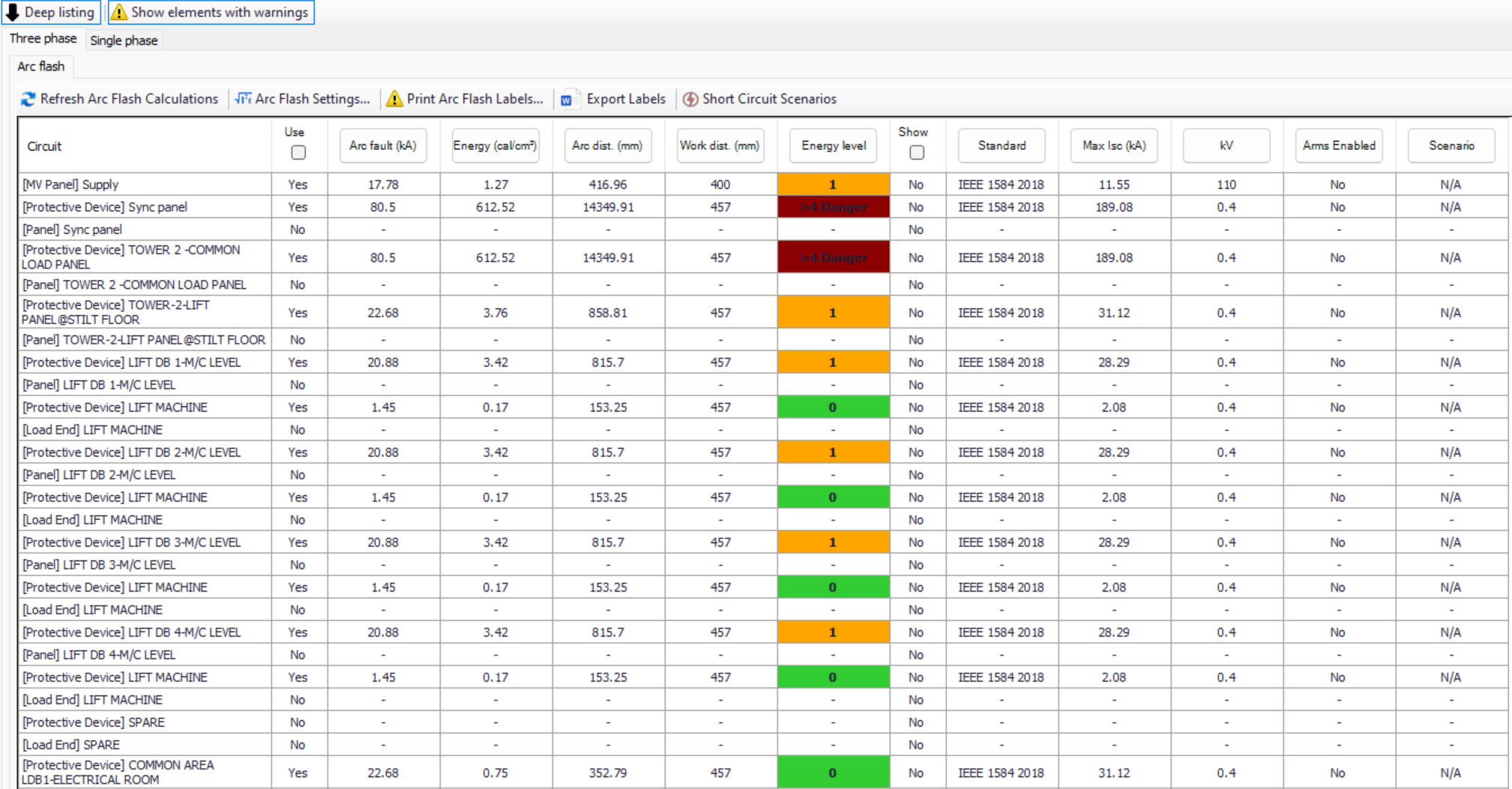

3. Arc Flash Study Add-on
The Arc Flash Study Add-on Module is a completely integrated module within our Electrical OM NEC-IN Software, that enables the Engineer to perform fast and easy assessments of Arc Flash Hazards and Incident Energy Analysis.
One Time Cost: ₹1,01,000
Annual Renewal & Maintenance Cost (from 2nd year): ₹ 25,250
